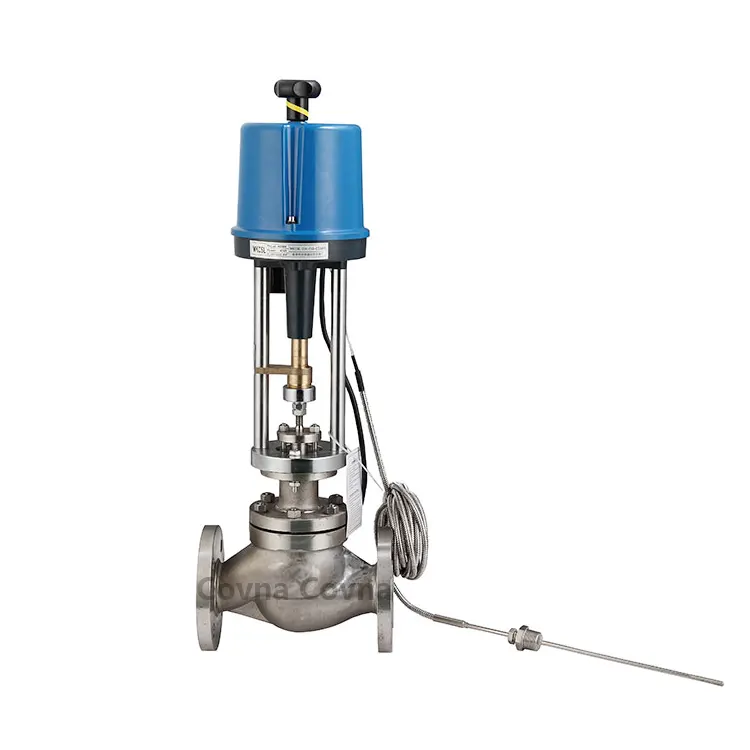

COVNA Electric Temperature Control Valve
The electric single-seat ( sleeve ) adjustment valve is small in size and excellent in performance, and is a high-quality base type electric control valve product. It is suitable for production process control systems for general fluid media process conditions. The single seat valve has reliable operating characteristics, small seat leakage, coarse flow characteristics, wide adjustable range, compact structure and smooth flow path. This series of products has good performance and stable operation , and can meet the user’s control needs in a wide range of applications.
- Model: Electric control valve
- Size Range: 1'' to 12''
- Pressure Range: 1.6 to 6.4MPa
- Material: Stainless Steel, WCB
COVNA Electric Temperature Control Valve Overview:
The 3810L series of electronic actuators take 220V AC single-phase power supply as the driving power supply, which receives control signal from regulator, it is a new actuator for predetermined linear reciprocating motion.
Nominal Pressure | ZZWPE-16CPN16 |
Medium Temperature | ≤ 250 ℃, 350℃(Customized) |
Power supply | 220VAC ±10 % 50Hz |
Control signal | 4-20mA |
Flow Characteristics | Equal percentage |
Applicable media | Water, Steam, Oil |
Types of Electric Control Valves:
