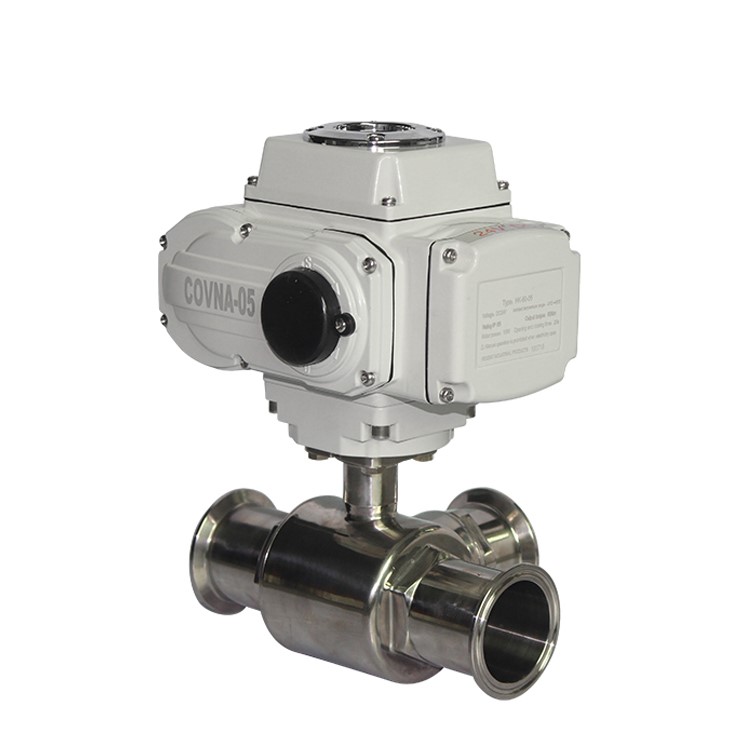

HK60-Q-WT 3 Way Food Grade Stainless Steel Sanitary 1/2 Motorized Ball Valve
This 3 way food grade sanitary electric motorized actuator ball valve designed for compatibility with the widest variety of industrial and OEM applications, exclusively for enduring automation. Ideal for high-cycle OEM and end user applications. As a 3 way motor ball valve supplier, we offer high quality electric actuator and Eco-friendly valve for your project.
- Model: HK60-Q-WT
- Size Range: 1/2'' to 4''
- Pressure Range: 1.0MPa to 6.4MPa
- Material: Stainless Steel
Food Grade Sanitary Motorized Ball Valve Suppliers
- Sanitary motorized valve torque range from 15 Nm to 4,000 Nm
- Modulating torque range from 15 Nm to 1,600 Nm
- Patented Valve-to-Actuator Mounting System
- Ultra-Compact Design
- Can Be Customized to Meet Specific Application Needs
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field operation | The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus |
| Voltage Optional | AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized |
| Protection Class | IP65, Explosion Proof Construction Are Available: EX ll BT4 |
| Valve Body | Valve components | ||
| Nominal size | DN15-DN200 | Sealing material | PTFE: -20℃~180℃
PPL: -29℃~250℃ |
| Body Material | Stainless Steel | Disc Material | SS304, SS316, SS316L |
| End Connection | Clamp | Stem Material | Stainless Steel |
| Operating Pressure | 1.0 / 1.6 / 2.0 / 6.4 MPa (10 / 16 / 20 / 64 bar) | Applicable media | Water, Air, Gas, Oil, Liquid |
| Structure | 3 Way L-port/T-port | Design standard | ISO, DIN, IDF, SMS, 3A |
● ON/OFF Type Electric Actuator: 90 degree rotation. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.
● Modulating Type Electric Actuator: Adjust open/close angle from 0 to 90 degree. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.
● Intelligent Type Electric Actuator: Adjust open/close angle from 0 to 90 degree. LED display screen to allow you check the open/close angle easier. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.
| Series | 5 | 10 | 16 | 30 | 60 | 125 | 250 | 400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| 90° Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S |
| Angle Of Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Working Current | 0.23A | 0.35A | 0.4A | 0.45A | 0.6A | 1.03A | 1.85A | 2.7A |
| Drive Motor | 50W | 75W | 80W | 100W | 130W | 210W | 285W | 360W |
| Mounting Standard | ISO5211 direct mounting | |||||||
| Voltage Options | DC12V, DC24V, AC24V, AC110V, AC220V, AC380V | |||||||
| Input Signal | 4-20mA, 1-5VDC, 0-10VDC | |||||||
| Output Signal | 4-20mA, 1-5VDC, 0-10VDC | |||||||
| Protection Class | IP65 protection class | |||||||
| Ambient Temp | -20 to +60°C | |||||||
| Wiring Diagram | A: ON/OFF type with light indicator signal feedback | |||||||
| B: ON/OFF type with passive contact signal feedback | ||||||||
| C: ON/OFF type with resisance potentiometer signal feedback | ||||||||
| D: ON/OFF type with resistance potentiometer and neutral posistion signal feedback | ||||||||
| E: Regulation type with servo control module | ||||||||
| F: DC24/DC12V direct ON/OFF type | ||||||||
| G: AC380V 3-phase power supply with passive signal feedback | ||||||||
| H: AC380V 3-phase power supply with resistance potentiometer and neutral posistion signal feedback | ||||||||
