VALVE PRODUCTS

COVNA aims to provide customers quailty products with competitive pricing

3L/T 2100F -F Series Class 150 Full Port 3-Way Flanged Ball Valve

COVNA stainless steel 3-way ball valves provide shut-off or directional flow control with a wide selection of flow patterns. A single 3-way can replace several 2-ways, saving valuable space and simplifying piping.

Size from DN15~DN200, 1/2inch~8inch with T-port or L-port.

Pneumatic actuator or electric actuator can be set

Other options: 2 way with 2pc or 3pc, 3 way, 4 way, 5 way

  • Model: Flange Ball Valve
  • Size Range: DN15-DN400
  • Pressure Range: PN1.6, 2.5, 4.0, 6.4 MPa
  • Material: Stainless Steel 304 or Stainless Steel 316

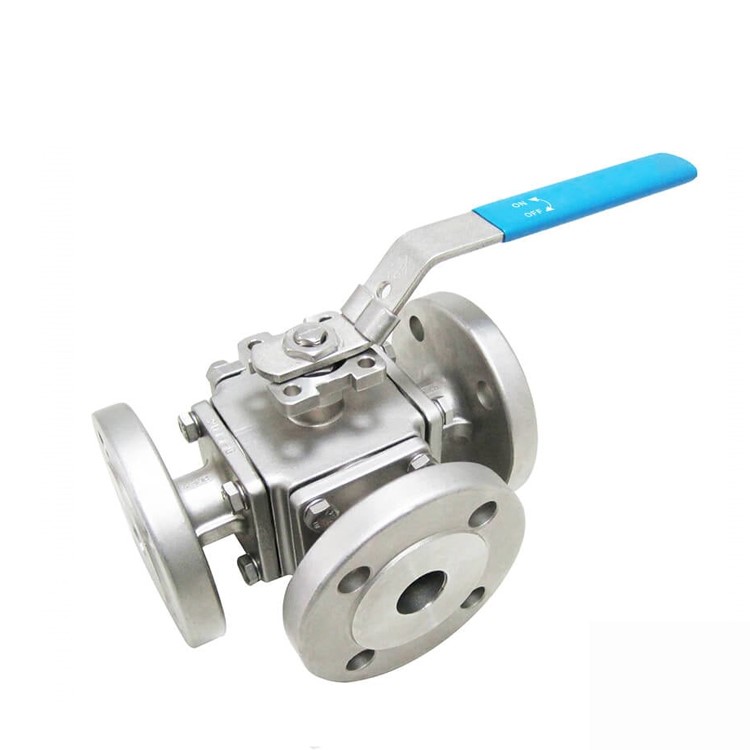

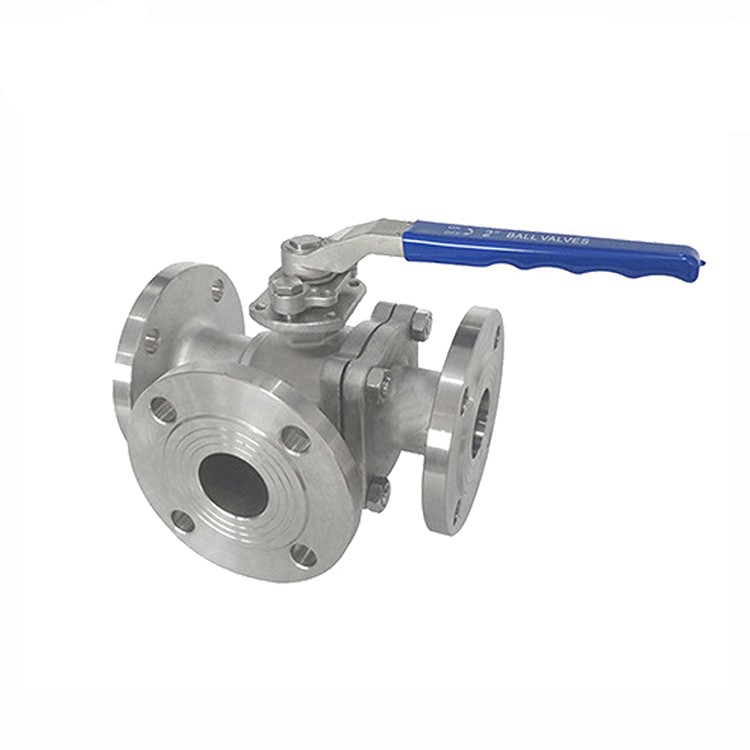

COVNA 3 Way  Stainless Steel Flanged Ball Valve

manual flange ball valve

Features:

  • Working Temperature: -29~180℃,
  •  Suitable Medium: Water, Oil, Gas, Air, etc
  • ISO5211 mounting for electric actuator and pneumatic actuator
  • Offering solution for the applications which need flange connection

technical parameters of valve body

Product Name
COVNA ANSI American Standard 150LB 3 Way Manual Flange Ball Valve
Size Range
DN15-DN400
Pressure Rating
150LB ( 300LB and 600LB is optional)
End Connection
Flange
Body Materials
Stainless Steel, WCB, CF8, CF8M
Seat Materials
PTFE
Working Temperature
PTFE≤180°C, Metal Seated≤350°C
Optional Actuation
Pneumatic Actuated or Electric Actuated

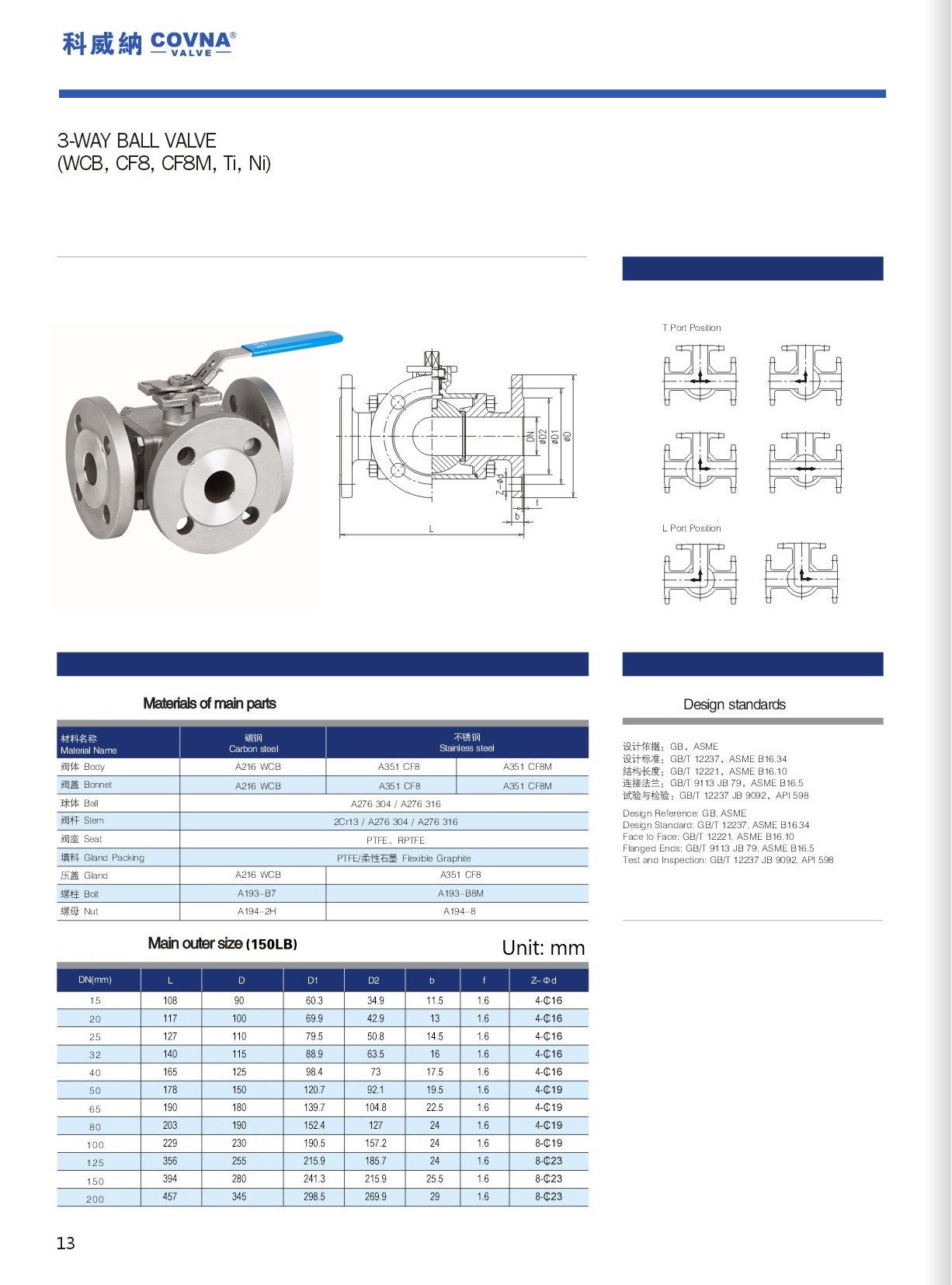

3 way flange ball valve PDF
