VALVE PRODUCTS

COVNA aims to provide customers quailty products with competitive pricing

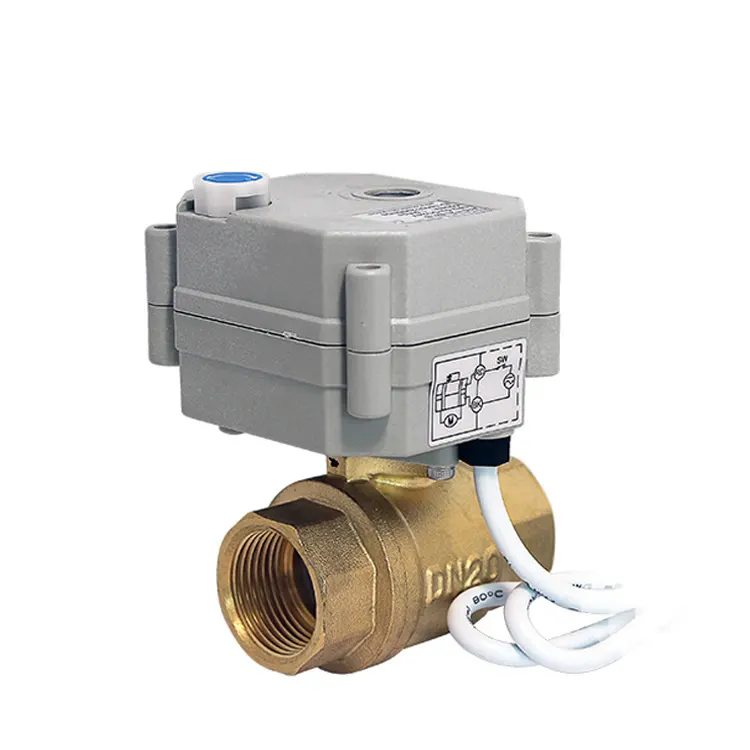

COVNA CWX-15n Mini Motorized Ball Valve

COVNA Miniature Timer Control Motorized Ball Valve with brass and stainless steel material, gray and black color. Working voltage: AC110V~230V, DC9~24V, size range from 1/2”~2”; Zero leakage and good sealing performance. User friendly ON/OFF timer control. OEM branding available. It has been successfully applied in many industrial fields, such as air conditioning system, fire fighting system, water treatment system, pipeline purging, analytical instruments, flue gas sampling and other industries

  • Model: HK62-H
  • Size Range: 1/2" to 3/4"
  • Pressure Range: 0~1.0MPa
  • Material: Brass

COVNA CWX-15n Mini Motorized Ball Valve

  •  All-copper gear design, high accuracy output torque, especially for multi-channel scaling system
  •  Small size, compact structure, easy to set time control
  • A variety of control methods, either to accept remote valve position control signal, but also the feedback signal in place for computer intelligence unit testing
  • Good sealing performance. IP67 protection class
  • Leakage: Zero leakage, Return difference: ±2.5%

technical parameters of valve body

Model
HK62-H
Voltage
AC110V~230V, DC9~24V
MOQ
1 Set
Working current
≤80mA
Open/Close time
≤7s
No. of Ways
2 Way
Torque output
2.0N.M
End Connection
BSP Thread
Life time
100,000 times
Medium
Water, Air

motorized ball valve

Body Material
Brass, ss304, ss316(optional)
Temp. of Media
2°C to 90°C
Valve Ball
PVC, UPVC, Brass, Stainless Steel(Optional)
Certification
ISO 9001, CE, TUV, SGS
Sealing Material
SEPDM
Indicator
Yes
Keeping Valve Open Time
0H:0M:OS-99H:59M:59S
Manual override
NO
Actuator material
Engineering Plastics
Ambient temperature
-15°C to 50°C
