VALVE PRODUCTS

COVNA aims to provide customers quailty products with competitive pricing

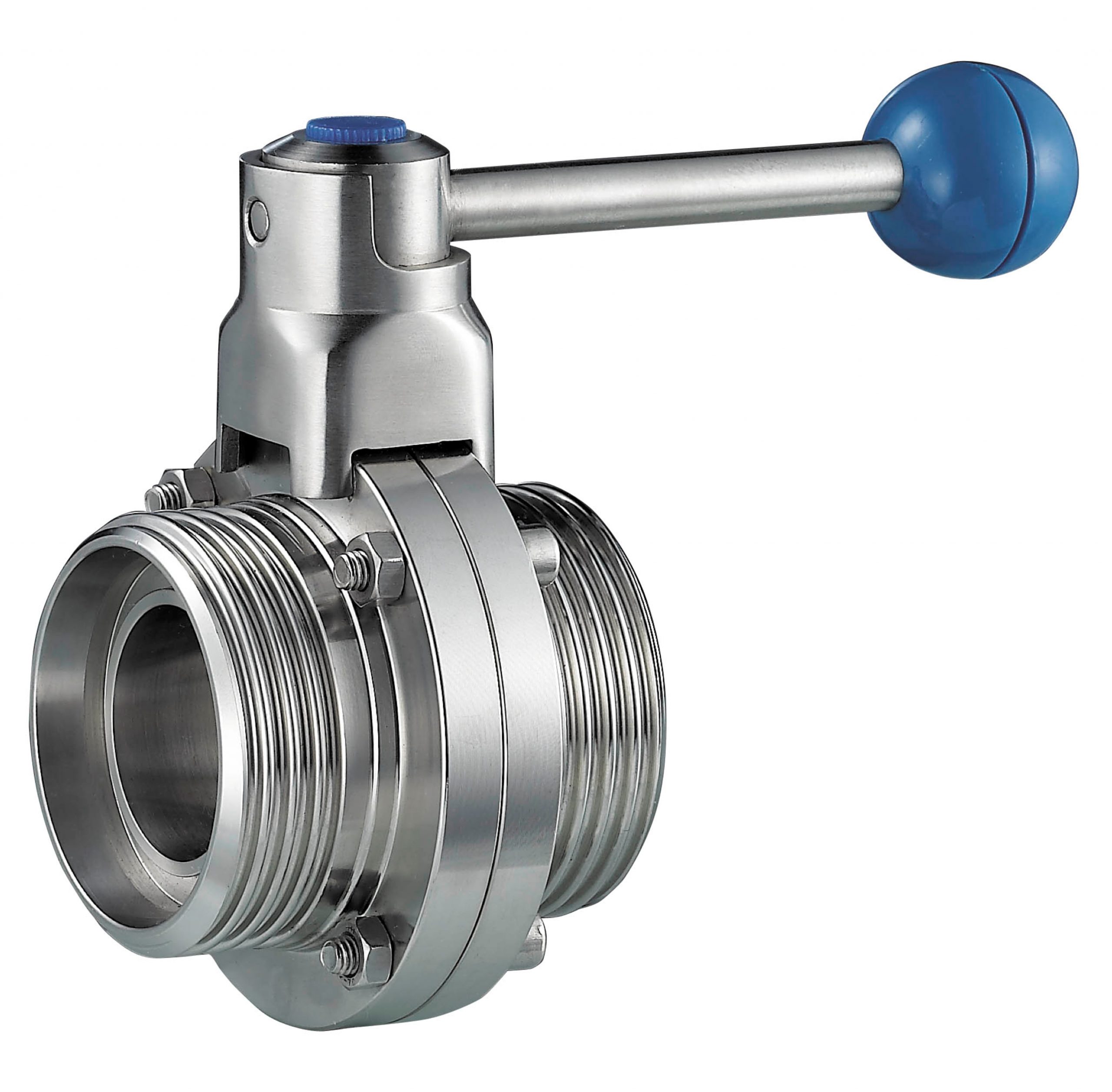

Stainless Steel Tri Clover Sanitary Butterfly Valve

Manual sanitary butterfly valves, also can actuated by electric and pneumatic, can be used in most liquid product applications in the food-processing, pharmaceutical and chemical industries; such as beer, milk, pure water, soft drink, etc. Large size range for choice, 2 inches to 24 inches are available. Food safe, easy connection.

  • Model: Sanitary butterfly valve
  • Size Range: 1/2" to 12"
  • Pressure Range: 0~10Bar
  • Material: SS316, SS304

Tri Clamp Hygenic Butterfly Valve with handle

  • Novel design, reasonable, unique structure, light weight
  • Sealing materials are resistant to aging, corrosion and long service life
  • Widely used in process control occasions such as food, pharmaceuticals, cosmetics, clean steam, alcohol, beverages, biochemical industrial processes
  • The butterfly valve can be operated automatically through an actuator or manually with a handle.

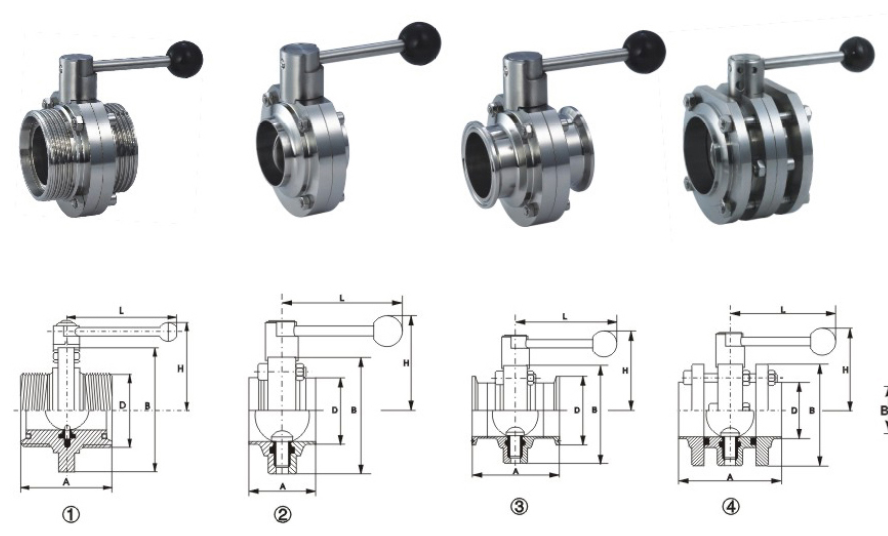

sanitary butterfly valve

sanitary butterfly valve

Model
Sanitary butterfly valve
Operation
Manual Operation
MOQ
1 Set
Optional Actuation
Electric / Pneumatic
Applicable Standard
GB
Structure
Centerline
Port Size
2 inch
End Connection
Tri clamp
Operating Pressure
0~10Bar
Media
Water, Oil, Gas, Air
Body Material
Stainless steel
Temp. of Media
-10°C to 80°C
Disc Material
Stainless steel
Certification
ISO 9001, CE, TUV, SGS
Sealing Material
EPDM
Warranty
1 Year (12 Months)
